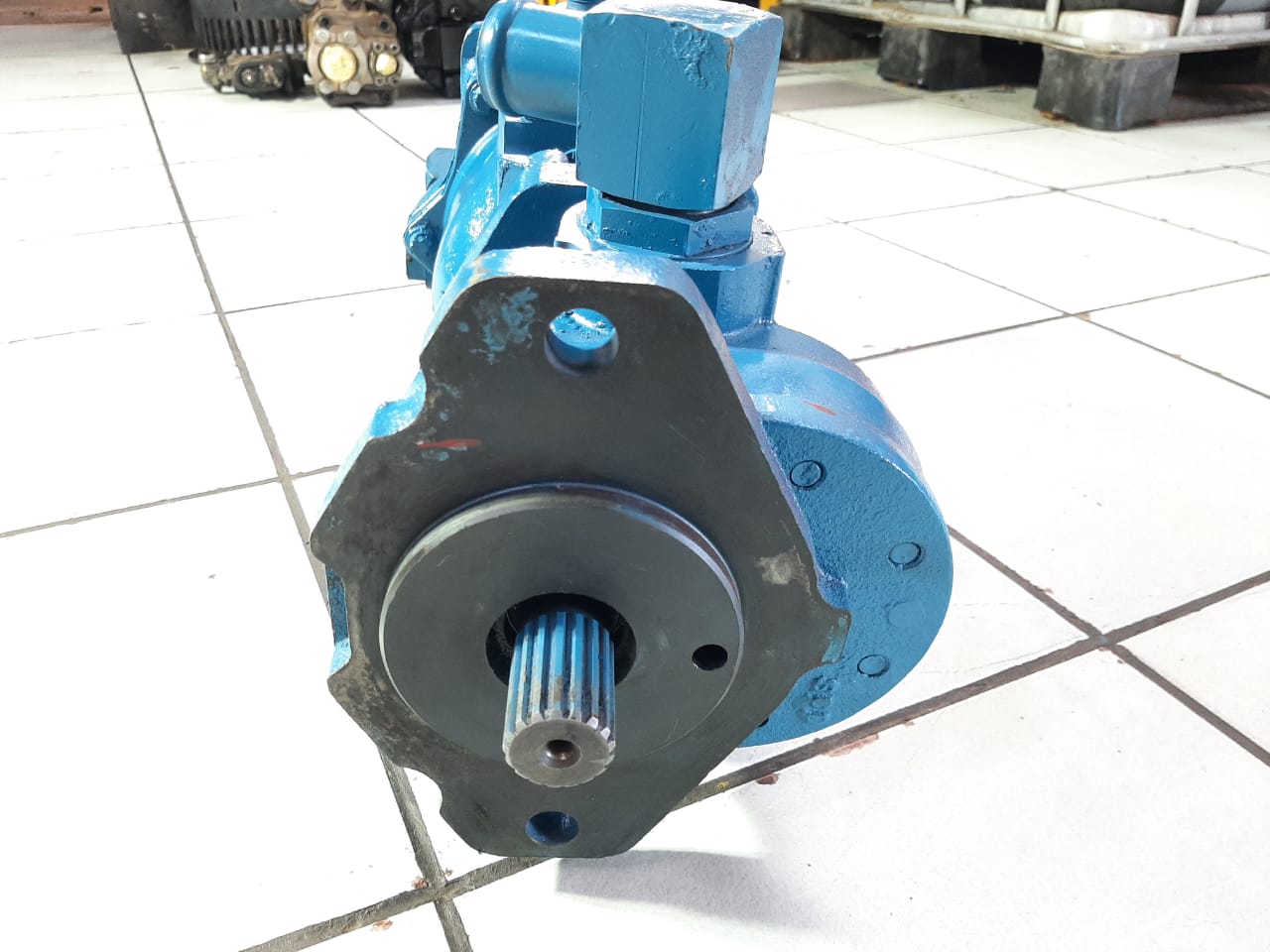

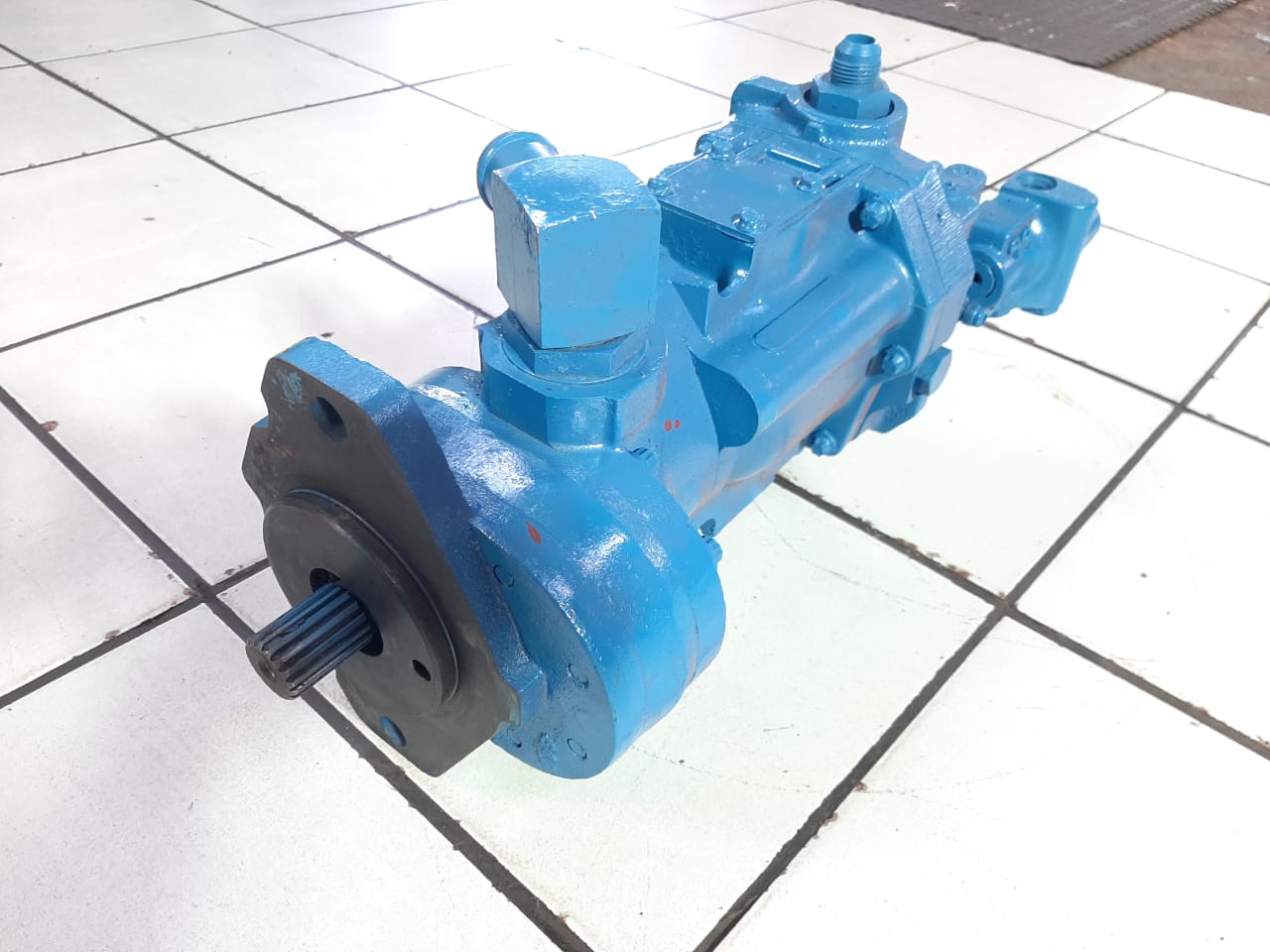

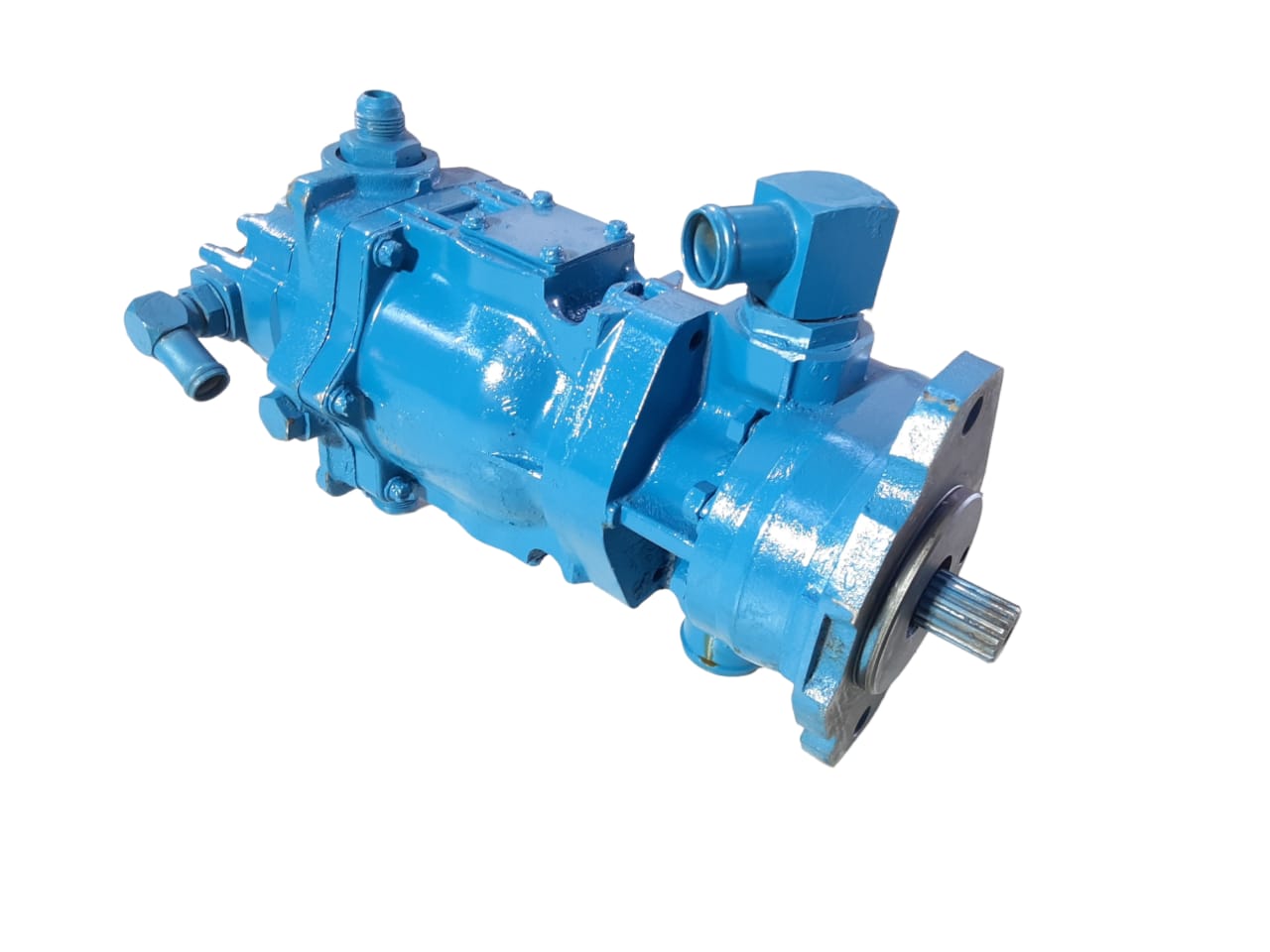

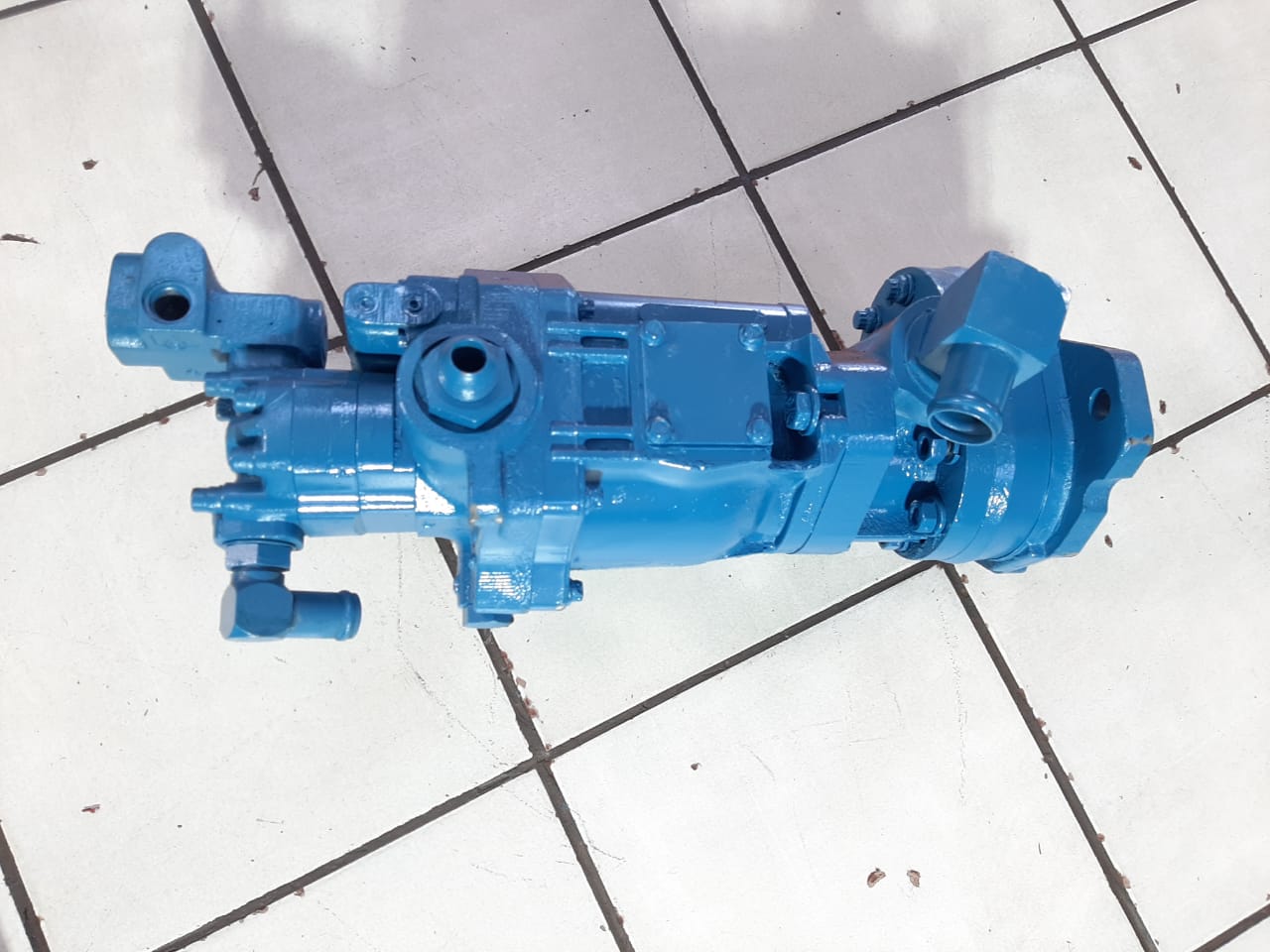

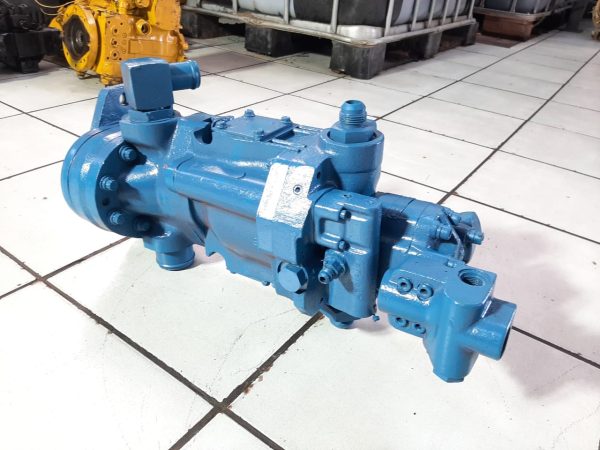

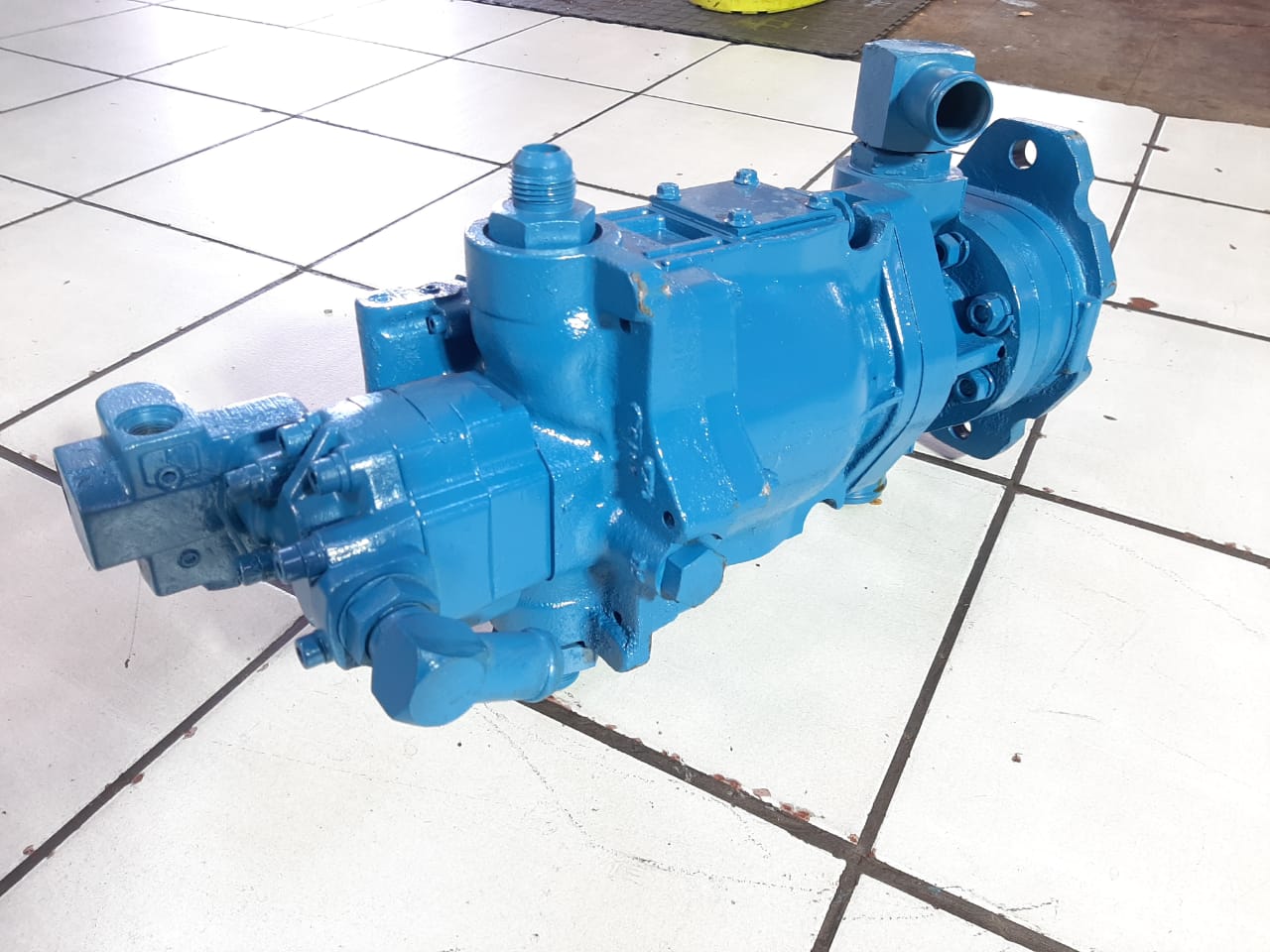

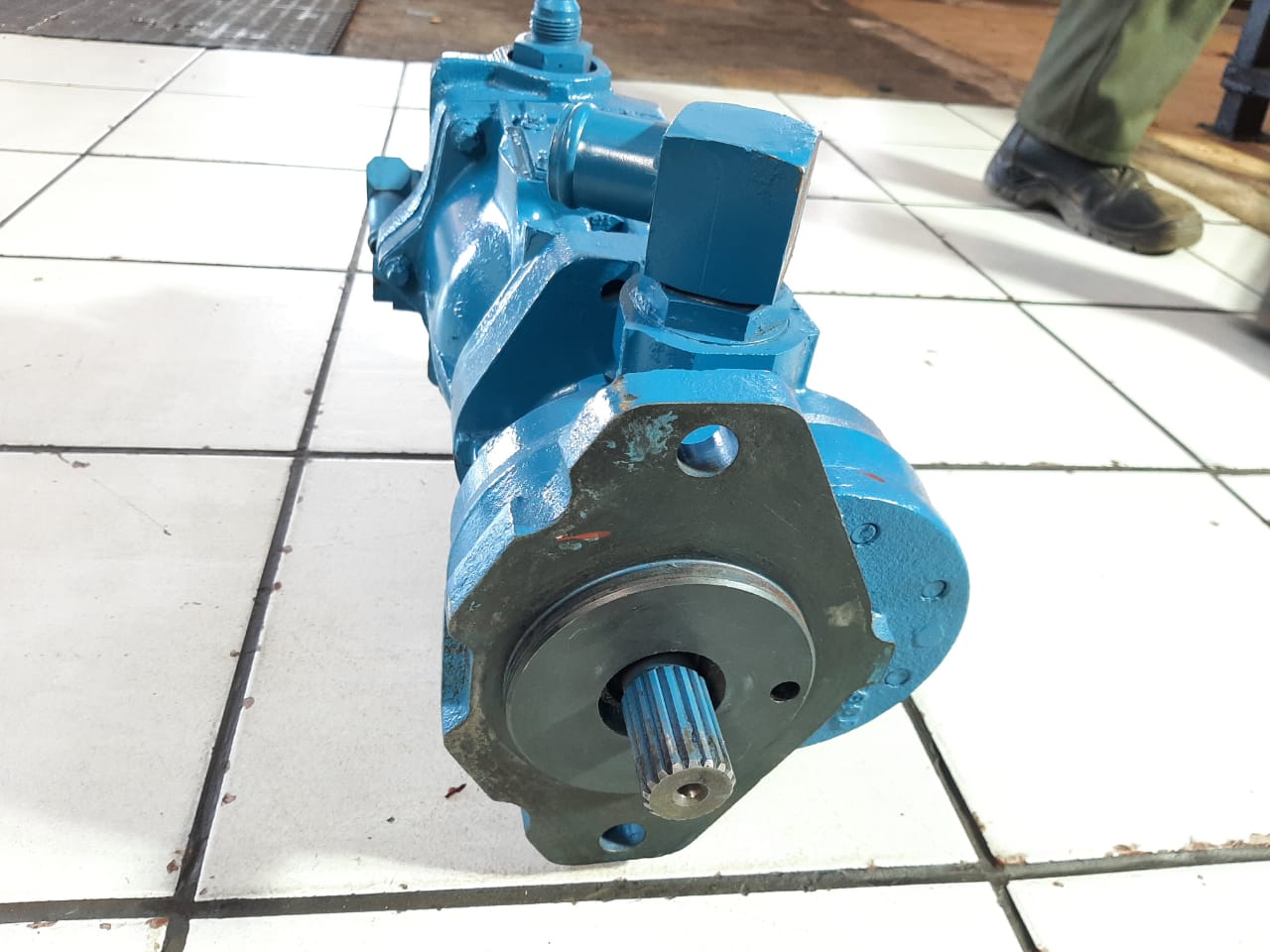

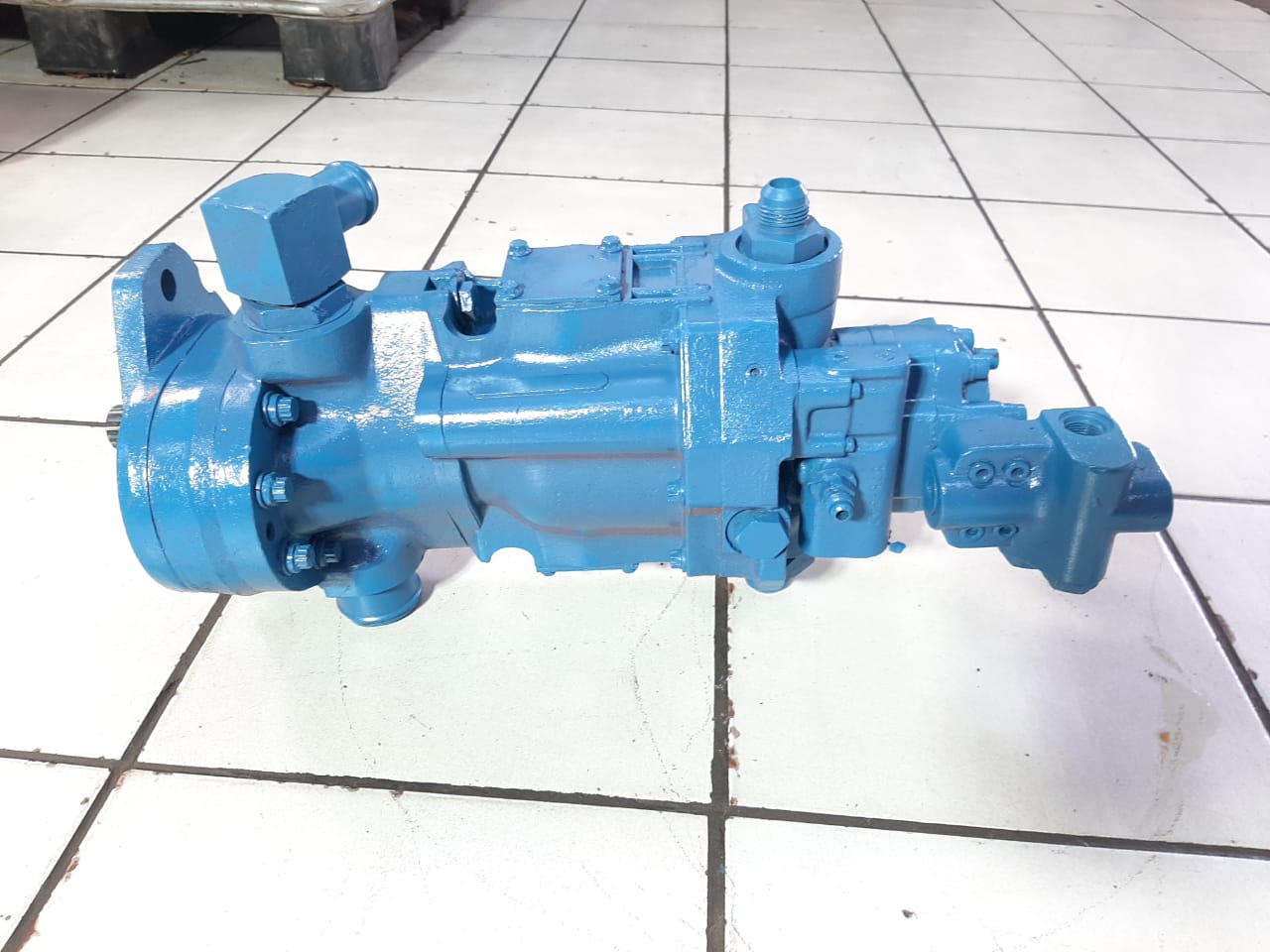

Eaton Vickers PVQ25/20V865 In-Line, Variable Displacement Axial Piston Pumps

Description

• 20V865
  • Displacement per Revolution: 0.403 cu in/rev (6.6 cm³/r).
  • Flow Rate (at 3600 RPM & 1000 PSI): 5.3 GPM (approximate).
  • Maximum Continuous Pressure: 3,000 PSI (210 bar).
  • Maximum Intermittent Pressure: 3,500 PSI (240 bar).
  • Maximum Speed: 3,600 RPM.
  • Minimum Speed: 750 RPM.
  • Rotation: CW (Clockwise) – Field Reversible.
• PVQ25
  • Displacement: 25.2 cc/rev (1.54 in3 cubed /rev).
  • Maximum Pressure: 210 bar (3000 psi).
  • Rated Speed: 1800 r/min.
  • Maximum Power (at 1800 rpm & 210 bar): ~14.9 kW (20 hp).
  • Rotation: Right-hand (CW) standard.
• Pressure Control: Standard Pressure Compensator (CM, C) or Load Sensing (CVB, CVCB).
• Condition: Used.
• Price + VAT.

Situated in Memel, North East Free State.

Call or Whatsapp:
Meyer (+27) 72 573 3915
Llewellyn (+27) 74 076 0521
Contact us – 058 924 0609.
