Description
-

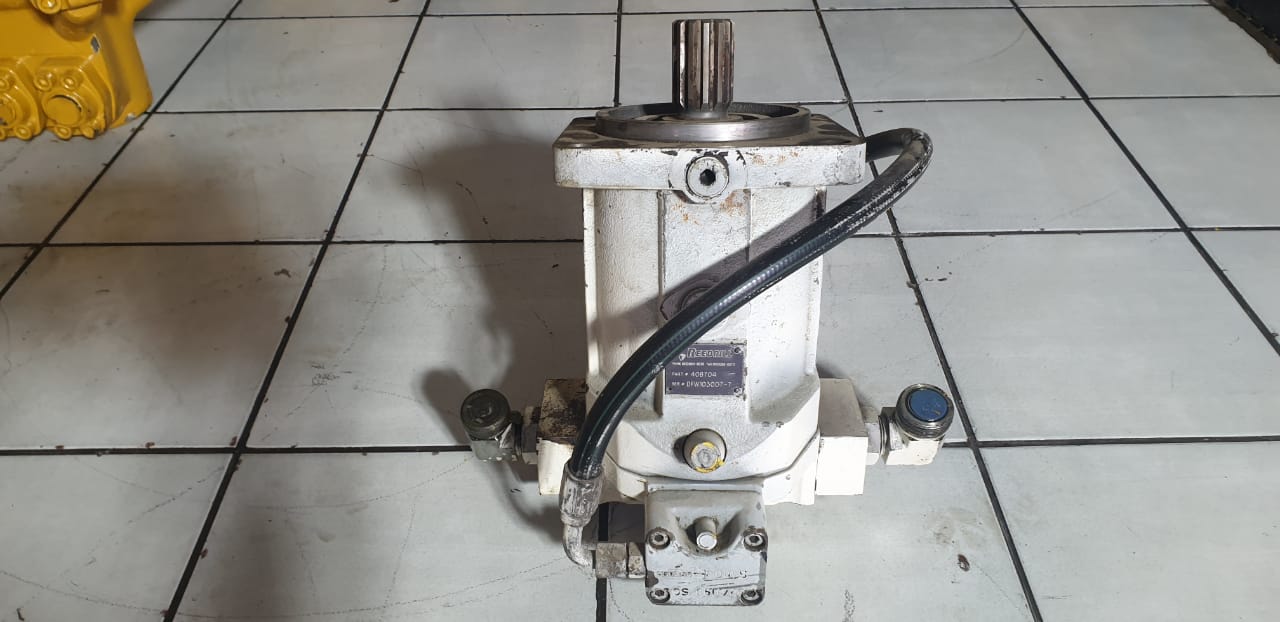

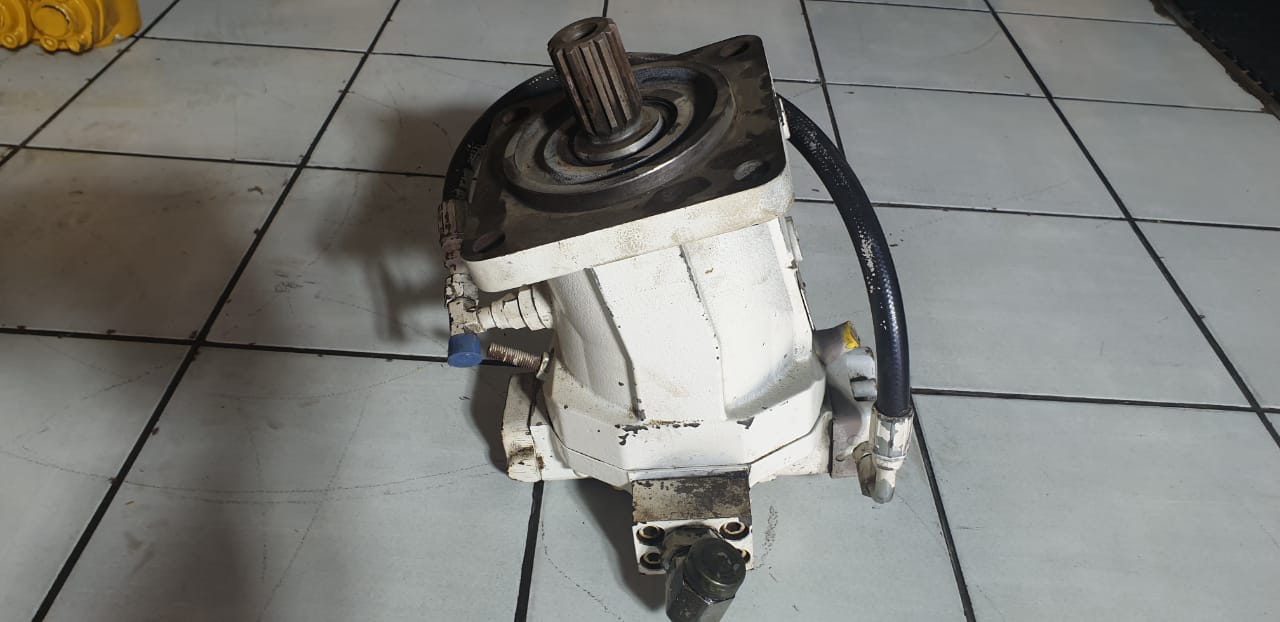

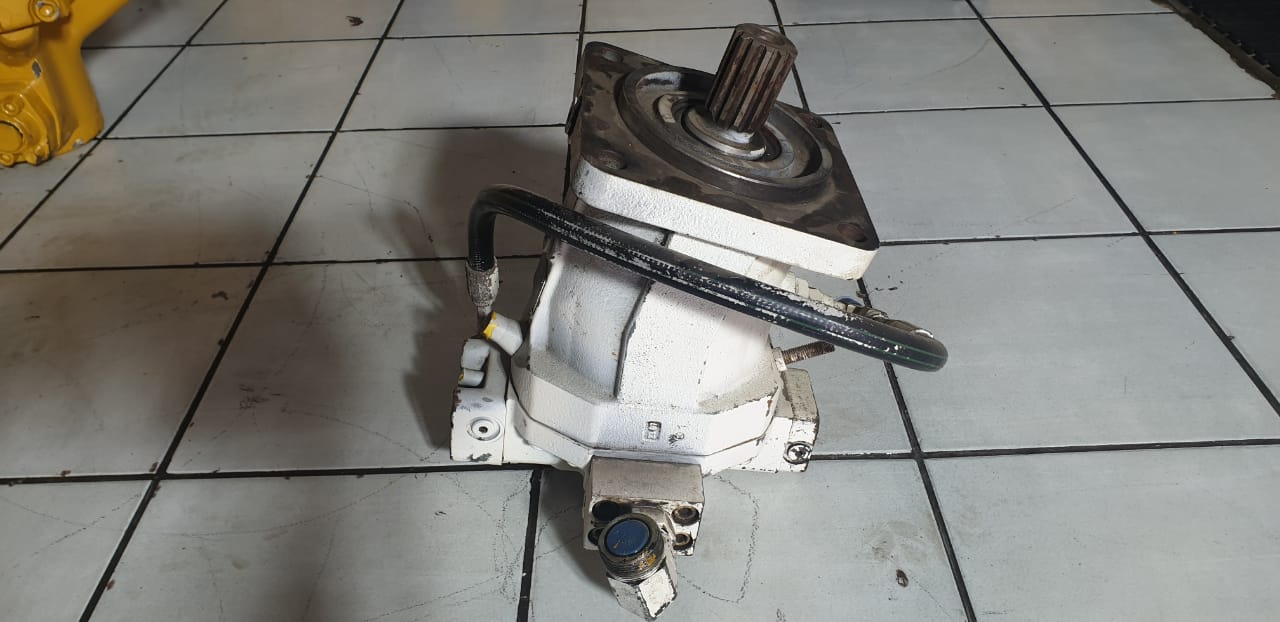

Key Technical Specifications for HPR55 (Standard HPR-02 Series):
- Displacement: 55 cm³/rev (max)
- Operating Pressure:
- Nominal Pressure: 420 bar
- Maximum Pressure: 500 bar
- Speed:
- Rated Speed: Up to 2700 rpm (without supercharging)
- Flow Rate: Max oil flow approximately 148.5 l/min
- Torque: Maximum input torque is 368 Nm
- Weight: Approximately 39 kg
- Control Options: Various load-sensing (LS) and pressure-regulating controls
- Features: Integrated suction-side stability, noise-optimized design (SPU), and through-drive options
Operating Conditions:- Fluid Viscosity: 10 cSt (min) to 1000 cSt (max for cold start)
- Housing Temperature: Recommended operating range up to 90°C
- Shaft Loads: Axial load capacity up to 2000 N (push/pull)
- Spline diameter: 43mm
- Number of splines: 13
- Condition: Used
- Price + VAT.
Situated in Memel, North East Free State.
Call or Whatsapp:
Meyer (+27) 72 573 3915
Llewellyn (+27) 74 076 0521
Contact us – 058 924 0609.
